High-Speed Sugar Packaging Machine Manufacturer
Elevate your production with industry-leading precision dosing, multi-lane continuous motion, and smart turnkey automated packaging lines. Engineered for white refined, raw brown, powdered, and specialty sweetener packaging with zero giveaway and ultra-tight hermetic seals.
State-of-the-Art Sugar Packaging Technology
Industrial granulated sugar and icing sugar handling present distinct technical challenges including humidity absorption, particle abrasion, and dusting. Ludyway designs dedicated dosing and sealing architectures for uncompromising operational efficiency.
Rotary Volumetric Dosing
Engineered for fine and coarse granulated sugar. Telescopic measuring cups ensure precision weight repeatability within ±0.5% without shearing crystals or generating dust clouds.
Multi-Axis Servo Synchronization
Omron and Siemens PLC integration controls film feeding, horizontal heat sealing, and pneumatic slitting in continuous synchronization for stable 80-1200 packs/min throughput.
Dust-Tight Hermetic Sealing
Equipped with anti-static air ionizers, specialized suction extraction collars, and customized micro-ribbed sealing jaws that prevent particle trapping in seal areas.
Food-Grade Stainless Construction
Constructed completely from certified AISI 304 and 316L mirror-polished contact parts. Fully compliant with FDA, GMP, and CE standards for instant CIP washdown routines.
Intelligent Recipe Memory
Stores up to 100 packaging parameter recipes on an intuitive 10-inch color touchscreen interface. Change bag sizes, filling weights, and sealing temps with one touch.
Full Line Turnkey Automation
Seamless upstream and downstream integration with Z-type bucket elevators, nitrogen gas flushers, dynamic checkweighers, inline cartoning, and case packing systems.
High-Performance Granule & Sugar Machinery
Explore our precision-engineered multi-lane stick pack and sachet packaging equipment tailored for sugar refinery plants, hotel portion packaging, and beverage dry mixes.
Multi-Lane Sugar Stick Packaging Machine
View Details
Automatic Sugar Packaging Machine for Granules
View Details
Brown Sugar Granule & Powder Multi-Lane Sachet Line
View Details
Powdered Sugar Sachet & Stick Pack Filler
View Details
High-Speed Multi-Lane Sugar Sachet Machine
View Details
Granule Sugar Multi-Lane Stick Pack System
View Details
Sugar Substitute Multi-Lane Packaging Equipment
View Details

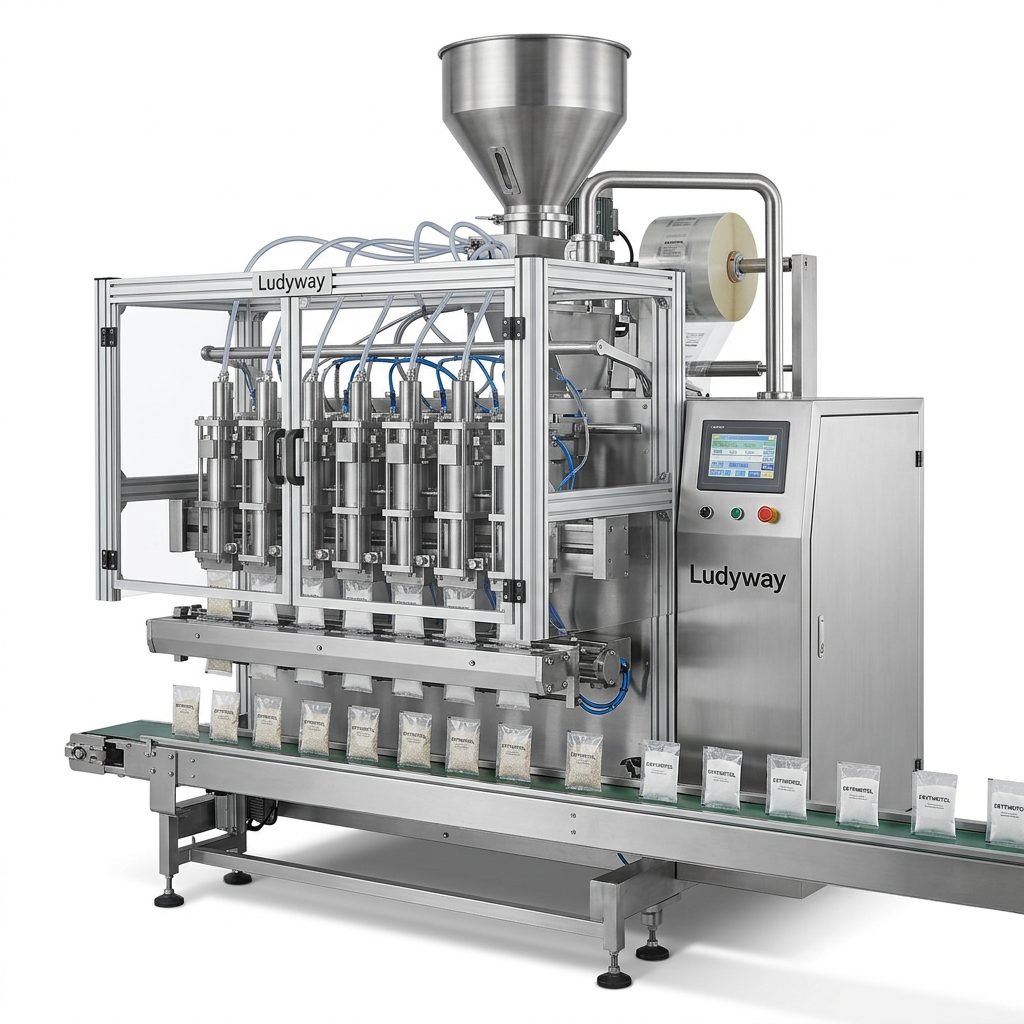

Erythritol Granule & Powder Packaging System
View DetailsSugar Packaging Machine Model Specifications
Compare specifications across standard multi-lane configurations. All models support custom lane expansions, specialized roll stock widths, and downstream case packing integrations.
| Model Type | Lane Options | Max Speed (Packs/Min) | Dosing Range (g) | Bag Formats | Air / Power Reqs |
|---|---|---|---|---|---|
| LW-S400 Series | 4 – 6 Lanes | Up to 240 ppm | 1g – 15g | Stick Pack / 3-Side Sachet | 0.6 MPa | 3.5 kW |
| LW-S800 Series | 8 – 10 Lanes | Up to 450 ppm | 1g – 25g | Stick Pack / 4-Side Sachet | 0.6 MPa | 5.8 kW |
| LW-S1200 Turbo Line | 12 – 16 Lanes | Up to 800+ ppm | 0.5g – 10g | Micro-Stick / Pillow Pouch | 0.8 MPa | 8.2 kW |
| LW-VFFS Heavy Duty | Single Lane VFFS | Up to 70 bpm | 250g – 5000g | Pillow / Gusseted / Quad Seal | 0.6 MPa | 4.2 kW |
Why Invest in a Modern Sugar Packaging Machine Solution?
In high-volume food processing, commercial catering, hotel supply distribution, and retail consumer goods packaging, sugar remains one of the most traded and packaged dry commodities globally. From white refined sugar granules and demerara brown sugar to zero-calorie sugar substitutes (sucralose, erythritol, stevia, monk fruit), consumer and commercial demand demands immaculate packaging hygiene, extreme weight accuracy, and impeccable brand presentation.
Deploying a cutting-edge sugar packaging machine from Ludyway transforms conventional labor-intensive bagging lines into highly efficient, fully autonomous production assets. Our equipment integrates advanced multi-lane form-fill-seal (VFFS) systems that minimize raw material giveaway, eliminate mechanical friction wear, and drastically curtail packaging film waste.
Even a fraction of a gram overfill across millions of single-serve sugar stick packs creates substantial annual profit leaks. Ludyway volumetric cup dosing systems and multi-head combination scales feature dynamic micro-adjustments that maintain exact tolerances under continuous high-speed operation.
Comprehensive Sugar Packaging Formats & Applications
Different markets and distribution channels demand distinct pouch geometries, material barriers, and portion volumes. Ludyway packaging machines are engineered with flexible modular toolings to support multiple formats:
- Single-Serve Stick Packs (1g – 10g): The international standard for cafes, restaurants, hotels, and airlines. High aspect-ratio slender stick packs reduce packaging film consumption by up to 35% compared to conventional 4-side sachets.
- 4-Side & 3-Side Sealed Sachets (2g – 25g): Flat rectangular sachets offering expansive visual real estate for brand marketing, barcode clarity, and promotional print. Widely used for institutional table sugar and hotel guest rooms.
- Retail Pillow Pouches & Stand-Up Doypacks (250g – 2kg): Designed for supermarket grocery shelves with hermetic zipper seals, tear notches, and nitrogen gas flushing to protect hygroscopic sugars from humidity clumping.
- Heavy-Duty Bulk Bags (5kg – 25kg / 50kg): Automated open-mouth and valve bag filling lines equipped with heavy-duty gross weighing systems for commercial baking and confectionery factories.
Engineering Highlights of Ludyway Multi-Lane Sugar Packaging Systems
1. Overcoming Moisture Absorption & Abrasive Wear
Granular sugar is intrinsically hygroscopic and crystalline. Exposure to ambient moisture causes immediate agglomeration, which blocks standard feeder funnels and degrades seal integrity. Ludyway machines incorporate dry-air purge ports, vibratory assist hoppers, and anti-adhesion Teflon-coated transition chutes. Contact metals are hardened against abrasive friction to guarantee decades of uninterrupted operation.
2. Advanced Heat-Sealing & Slitting Technology
Improper temperature profiles create micro-pinholes or melt through thin laminate barriers. Our independent PID temperature controllers, paired with solid-state relays and durable rotary cutting blades, ensure razor-sharp serrated perforations and 100% leak-proof cross seals even when running at 100+ cycles per minute.
3. Complete Turnkey Packaging Line Integration
Ludyway offers holistic turnkey engineering. A single operator can manage an entire continuous line encompassing automatic material elevation, multi-lane sachet packaging, dynamic checkweighing, reject mechanisms, laser batch coding, robotic pick-and-place counting, and automatic carton boxing.
Manufacturing Infrastructure & Global Compliance
Operating across a 20,000㎡ modern production facility with over 200 high-precision CNC machine centers, Ludyway guarantees strict European CE compliance, ISO9001 certification, and comprehensive FAT/SAT support.
Frequently Asked Questions
Clear answers to crucial engineering, operational, and procurement queries regarding our automated sugar packaging machinery lines.
What types of sugar can be packaged on Ludyway machines?
Our equipment accommodates white granulated cane sugar, beet sugar, coarse crystal sugar, brown raw sugar, powdered/icing sugar (via auger filler attachment), and artificial/natural sugar substitute powders such as xylitol, erythritol, and stevia blends.
What is the filling accuracy of your sugar packaging machines?
For standard free-flowing granulated sugar, our rotary volumetric dosing cups achieve an accuracy tolerance within ±0.5% to ±1% per lane. For specialized micro-dose sweeteners (0.5g – 2g), servo auger fillers maintain strict pharmaceutical-grade dosing precision.
How many stick packs per minute can a single line produce?
Output is determined by the lane configuration. A 4-lane machine typically outputs 160–240 packs/min, an 8-lane machine outputs 320–480 packs/min, and our high-speed 16-lane industrial lines exceed 800–1000 stick packs per minute continuously.
What packaging film materials are compatible with the system?
Our multi-lane packaging machinery runs a wide array of heat-sealable laminated roll stocks including PET/AL/PE, PET/PE, OPP/CPP, Paper/PE, and modern 100% recyclable mono-material barrier films.
Ready to Upgrade Your Sugar Packaging Automation?
Consult with our factory engineering team today. We provide full project evaluations, sample stick pack testing, floor plan layouts, and comprehensive turnkey solutions.
