Stick Packaging Machine | High-Speed Stick Pack Solution
Engineered for unmatched throughput, precision volumetric and auger dosing, and superior hermetic sealing. Ludyway designs turnkey multi-lane stick packaging solutions powering pharmaceutical, nutritional, food, beverage, and personal care packaging lines worldwide.
Next-Gen Multi-Lane Stick Pack Solutions for High-Output Plants
Modern commercial manufacturing demands maximum output per square meter of cleanroom footprint. Our stick packaging machinery represents the pinnacle of multi-lane vertical form-fill-seal (VFFS) automation, optimizing material consumption and packaging speed.
Stick packaging—characterized by elongated, tubular single-serve pouches with longitudinal and transverse seals—has rapidly become the consumer-preferred format across food, nutraceutical, pharmaceutical, and personal care segments. Compared to conventional flat four-side-seal sachets, stick packs reduce flexible packaging film usage by up to 35% to 42%, substantially cutting carbon footprint and transport logistics overheads.
At Ludyway, our multi-lane stick packaging machines are built from the ground up on rigid SUS304/SUS316L stainless steel architectural frames. Utilizing fully synchronized multi-axis servo drive technology, each lane operates under ultra-precise real-time feedback loops. Whether running ultrafine pharmaceutical powders, abrasive crystalline granules, high-viscosity gels, or volatile aromatic liquids, our machines maintain dosing tolerances within ±0.5% to 1.0%.
The architecture strictly complies with international cGMP and CE safety directives, featuring tool-less changeover mechanisms, Clean-in-Place (CIP) / Sterilize-in-Place (SIP) compatibility, and full recipe-driven touchscreens that empower operators to pivot between package sizes and media densities in minutes.
Engineering Pillars Behind Ludyway Stick Pack Systems
Discover the advanced electromechanical technologies that drive our high-speed stick pack machinery, ensuring zero seal contamination, micro-gram dosing accuracy, and non-stop operational stability.
Multi-Axis Servo Synchronization
Independent servo-driven motion profiles govern film pulling, vertical sealing jaws, cross-cutting dies, and mechanical plungers. Eliminates mechanical backlash and delivers sub-millimeter registration accuracy even at cycle rates exceeding 80 cycles/minute.
Modular Dosing Engine Versatility
Hot-swappable dosing assemblies: servo-driven individual lane augers for cohesive powders, multi-piston positive displacement pumps for viscous liquids and pastes, and multi-cavity volumetric slides for free-flowing granules.
Hermetic Thermal & Ultrasonic Sealing
Independent PID temperature zones on both longitudinal and horizontal sealing dies guarantee consistent heat distribution across all lanes. Optional ultrasonic cold-sealing options prevent product degradation in heat-sensitive pharmaceuticals.
Laser-Guided Film Slitting System
High-hardness rotary or pneumatic slitting blades divide the master film roll into uniform strips with zero fringe fraying. Automated pneumatic web centering and edge-guide tracking prevent film wandering and reduce material waste.
Gas Purging & Atmosphere Control
Integrated nitrogen (N₂) injection needles direct high-purity inert gas into every stick pack tube prior to final horizontal closure. Lowers residual oxygen (O₂) levels below 1.0%, extending product shelf life for sensitive coffee, lipids, and active nutraceuticals.
Industry 4.0 IoT & Smart Diagnostics
Touchscreen HMI powered by industrial Siemens / Omron PLC architectures with Ethernet/IP and OPC-UA protocols. Offers real-time Overall Equipment Effectiveness (OEE) metrics, automatic fault isolation, and remote telemetry access.
Multi-Lane Stick Pack Machine Configuration Matrix
Select standard configurations or request custom lane spacing, dosing ranges, and integrated downstream cartoning lines engineered to your facility’s exact requirements.
| Model Series | Lane Number | Max Web Width | Stick Width Range | Stick Length Range | Max Output Capacity | Dosing Precision | Main Drive System |
|---|---|---|---|---|---|---|---|
| LD-SPM-2L | 2 Lanes | 180 mm | 15 – 45 mm | 50 – 180 mm | 60 – 120 sticks/min | ±0.5% – 1.0% | Servo Motor / PLC |
| LD-SPM-4L | 4 Lanes | 360 mm | 15 – 40 mm | 50 – 180 mm | 140 – 260 sticks/min | ±0.5% – 0.8% | Full Multi-Axis Servo |
| LD-SPM-6L | 6 Lanes | 540 mm | 15 – 35 mm | 50 – 160 mm | 240 – 420 sticks/min | ±0.5% – 0.8% | Full Multi-Axis Servo |
| LD-SPM-8L | 8 Lanes | 720 mm | 15 – 35 mm | 50 – 160 mm | 320 – 560 sticks/min | ±0.3% – 0.5% | High-Torque Servo Synchronous |
| LD-SPM-10L | 10 Lanes | 900 mm | 15 – 30 mm | 40 – 150 mm | 400 – 750 sticks/min | ±0.3% – 0.5% | Direct-Drive Servo Network |
| LD-SPM-12L Ultra | 12 Lanes | 1080 mm | 15 – 25 mm | 40 – 140 mm | 600 – 1,000+ sticks/min | ±0.2% – 0.5% | AI-Calibrated Servo Array |
Featured High-Speed Stick Packaging Solutions
Explore purpose-built packaging units calibrated for distinct physical properties—ranging from ultrafine active pharmaceutical ingredients to high-viscosity food concentrates.
Multi-Lane High-Speed Granule & Powder Line
Universal high-output multi-lane VFFS stick pack system featuring interchangeable dosing units for bulk nutrition and dry beverages.
View Specifications
Energy Gel & Liquid Multi-Lane System
Anti-drip rotary piston filling engine designed specifically for thick sports nutrition gels, fruit concentrates, and electrolyte fluids.
View Specifications
Instant Coffee Multi-Lane Stick Packer
Includes inline nitrogen flushing and hermetic gas-tight sealing to preserve roasted coffee aromas and prevent moisture absorption.
View Specifications

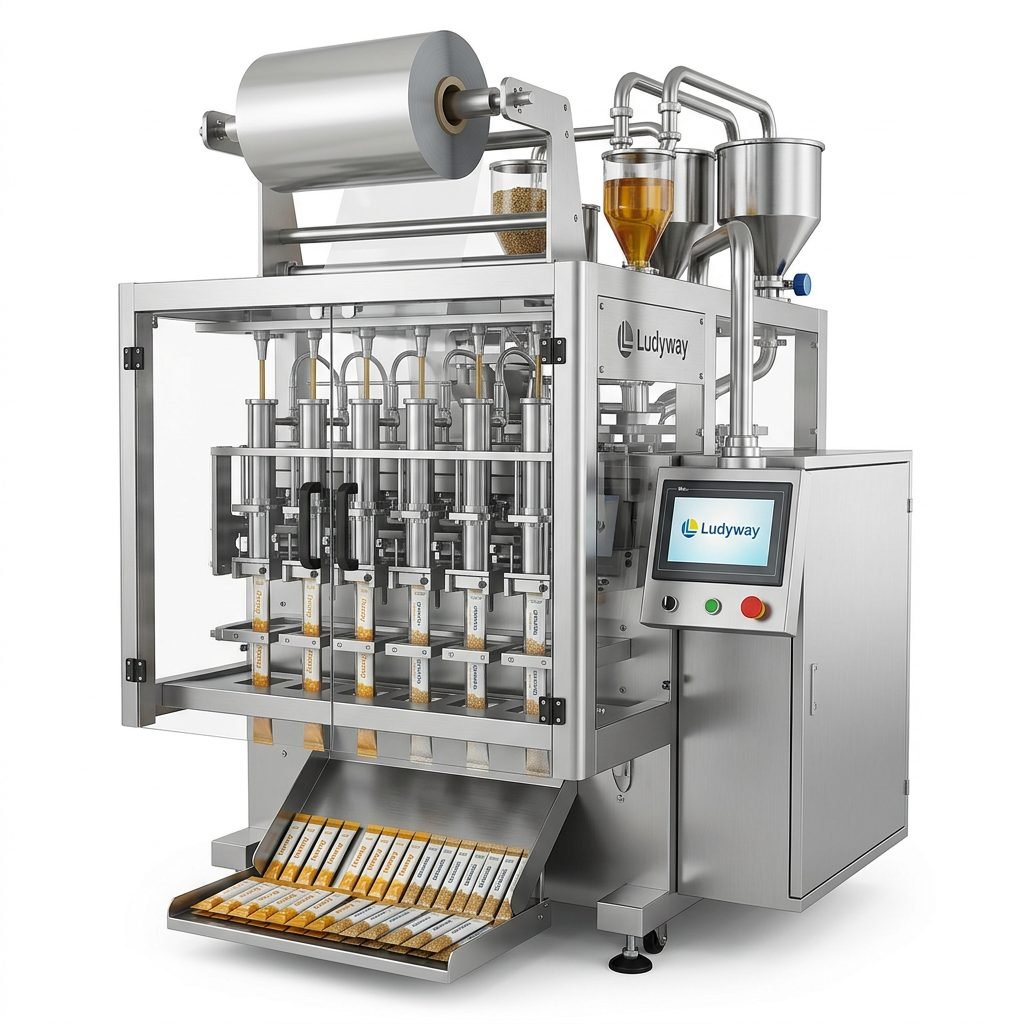

Honey & Viscous Liquid Stick Pack Machine
Jacketed heated product hopper with temperature-controlled dosing nozzles ensures steady laminar flow for pure honey and syrups.
View Specifications

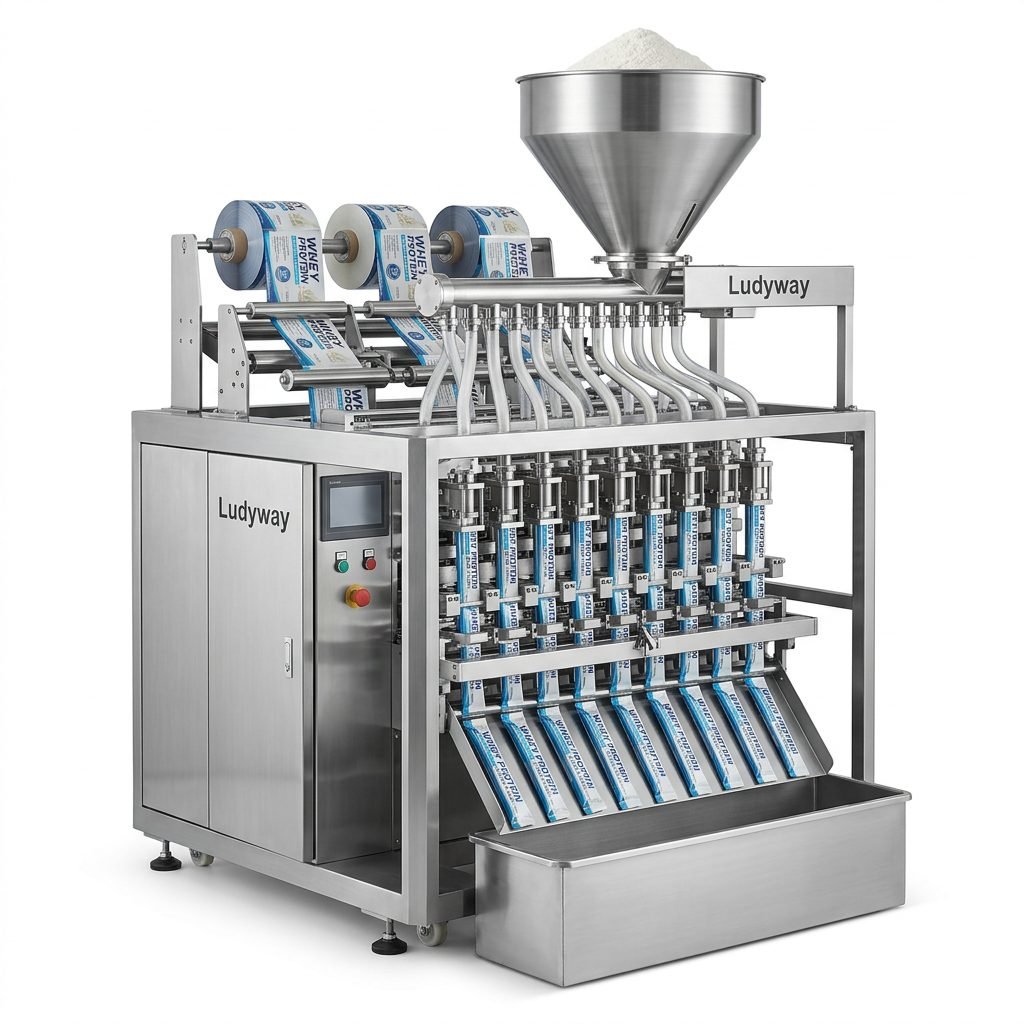

Whey Protein Multi-Lane Powder Machine
Integrated vacuum dust aspiration and individual servo auger spindles deliver clean, dust-free seals on high-protein fitness powders.
View Specifications
Nicotine Pouch & Herbal Stick Pack Line
Specialized ultrasonic and heat-seal technologies engineered for synthetic nicotine granules, snus portions, and herbal extracts.
View Specifications
Tri-Media Multi-Lane Stick Packaging Unit
A hybrid production platform capable of converting between powder, granular, and liquid media with fast tool-less changeover parts.
View Specifications
Pharmaceutical Vitamin C Stick Packer
Built to pharma cGMP regulations, featuring mirror-polished contact parts, 21 CFR Part 11 compliant data logging, and cleanroom design.
View SpecificationsEngineered to Handle Every Physical Formulation
Our multi-lane stick packaging machines process a comprehensive spectrum of viscosities, particulate geometries, and bulk densities across global consumer and medical product verticals.
Pharmaceutical & OTC Drugs
- Oral Rehydration Salts (ORS) & electrolytes
- Cold & fever effervescent powders
- Micro-dosed active pharmaceutical APIs
- Cough syrups & oral suspension liquids
- Full IQ/OQ validation & 21 CFR Part 11 support
Nutraceuticals & Functional Food
- Hydrolyzed collagen peptides & prebiotics
- Whey protein isolates & meal replacements
- Vitamin powders, greens & superfood blends
- Nootropic botanical powders & mushroom coffee
- Ashwagandha, turmeric & herbal remedies
Food, Condiments & Beverages
- Instant soluble coffee & 3-in-1 coffee mixes
- Refined white sugar, brown sugar & stevia
- Liquid seasonings, soy sauce, ketchup & chili oil
- Honey, maple syrup & chocolate syrups
- Dehydrated soup bases & gourmet spice blends
Cosmetics & Personal Care
- Single-dose anti-aging hyaluronic serums
- Sunscreen lotions & travel-size moisturizers
- Hair treatment serums, oils & conditioners
- Single-use hand sanitizing gels & washes
- Facial cleansers, clay masks & body balms
Nicotine & Tobacco Alternatives
- Synthetic white nicotine powder sticks
- Oral snus & smokeless tobacco portions
- Caffeine energy pouches & botanical blends
- High-speed multi-lane counting & cartoning
- Hermetic barrier foils preserving moisture
Agrochemical & Specialty Chemicals
- Water-soluble fertilizer powders & micro-nutrients
- Pesticide & herbicide concentrated granules
- Industrial synthetic adhesives, resins & glues
- Liquid detergent concentrates & descalers
- Automotive grease & specialized lubricant oils
Turnkey Downstream Packaging Line Integration
A high-speed stick pack machine is most profitable when integrated into a continuous automated workflow. Ludyway engineers complete turnkey lines connecting stick forming, inspection, cartoning, and palletizing.
Multi-Lane VFFS Dosing
High-speed primary forming, filling, sealing, coding, and precision cutting into individual stick packs.
Dynamic Checkweigh & X-Ray
Inline multi-lane checkweighing and metal detection with high-speed air-jet reject systems for under/over fills.
Robotic Collation & Cartoning
Servo collators stack sticks (e.g., 10, 20, 30 count) and feed them directly into automatic continuous horizontal cartoners.
Case Packing & Palletizing
Automatic case erectors, side-load case packers, taping/strapping stations, and robotic palletizing arms.
International Certifications & Regulatory Compliance
Every Ludyway packaging system is designed, fabricated, and rigorously tested in accordance with strict international safety, electrical, and hygiene codes.
CE Machinery Directive Compliance
ISO 9001 Quality Management
cGMP Sanitary Standards
Export Safety Conformity
Trusted by Leading Global Brands & World Expos
With installations across Europe, North America, Southeast Asia, the Middle East, and Latin America, Ludyway packaging machines operate at the heart of the world’s most demanding production facilities.
20,000㎡ Modern Production & Testing Complex
Backed by over 30 years of industrial expertise and 200+ units of high-precision CNC machining centers, our manufacturing complex ensures every stick pack machine meets exacting tolerances before dispatch.
Technical & Operational FAQs for Stick Pack Machinery
Key insights into throughput calculation, material compatibility, dosing accuracy, changeover protocols, and custom line engineering.
What flexible packaging film structures are compatible with Ludyway machines?
Our stick pack systems handle virtually all heat-sealable composite laminates, including PET/AL/PE, PET/PE, Paper/AL/PE, BOPP/VMCPP, and eco-friendly recyclable monomaterial PE/PE films. Film tension is actively modulated across all lanes to avoid thermal warping.
How is dosing accuracy maintained across multi-lane configurations?
For powders, each lane is powered by an independent servo motor driving individual micro-auger screws. For liquids, individual high-precision ceramic or stainless steel piston pumps ensure identical volume dispensing across every lane within ±0.5%.
What is the typical changeover time between different stick pack dimensions?
Length changes are executed instantly via the digital touchscreen HMI without mechanical adjustments. Complete width changes (requiring former tube and slitting assembly replacement) take approximately 30 to 45 minutes using our modular quick-release tooling.
Can the machine operate in cleanroom pharmaceutical environments?
Yes. Ludyway designs pharmaceutical-grade configurations with complete AISI 316L stainless steel contact zones, mirror polishing (<0.4μm Ra), laminar flow hood integrations, positive air pressure seals, and 21 CFR Part 11 electronic records.
How do you prevent powder dust from contaminating the horizontal heat seals?
We integrate multi-stage vacuum dust extraction manifolds located directly above the filling funnels. Combined with timed auger shut-off valves and static elimination bars, the sealing zone remains completely free of particulate dust.
What downstream automation modules can be integrated?
Ludyway delivers turnkey solutions that include inline checkweighers, laser date coding, multi-lane collators, cartoning machines, flow wrappers, case erectors, and robotic palletizing systems communicating seamlessly through a unified PLC.
What shapes and opening options can be cut on the stick packs?
Our die-cutting systems support straight cuts, micro-perforations, tear notches, easy-open directional laser scoring, round corner edges, and custom contour profiles for bottle-neck shapes or liquid spout pouring.
What after-sales service and engineering support does Ludyway provide?
We offer full FAT/SAT validation, on-site commissioning, operator training, 24/7 remote IoT telemetry diagnostic support, and guaranteed fast dispatch of genuine replacement spare parts worldwide.
Elevate Your Plant’s Output with Ludyway Stick Pack Technology
Send us your product samples, film specifications, and target packaging speeds. Our technical engineering team will configure a high-efficiency stick pack system and deliver a full CAD line layout within 24 hours.
