Engineered with multi-axis servo synchronization, optical vision alignment, and dynamic Modified Atmosphere Packaging (MAP) technology. Ludyway designs high-efficiency automated cupcake packaging systems that protect delicate frosting structures, extend shelf life, and deliver sanitary, hermetic wrapping for industrial bakeries worldwide.
Advanced Automatic Cupcake Wrapping Architecture
Modern cupcake manufacturing involves soft crumb textures, delicate sugar icing, cream toppings, and fragile paper baking cups. Traditional flow wrappers frequently cause topping smear, crush deformation, or defective film sealing. Ludyway’s automatic cupcake packaging machine series integrates touchless infeed gating, multi-axis servo controllers, and continuous-motion ultrasonic/rotary heat sealers to deliver pristine presentation with zero product waste.
No-Crush Smart Infeed Feeding
Utilizes variable-speed smart belts and optical photoelectric sensors to automatically space, align, and time individual or tray-loaded cupcakes without mechanical contact on delicate frosting or decorative toppings.
Tri-Servo Synchronous Drive
Independent servo motors regulate film unwinding, infeed conveyor tracking, and end-seal jaw cycling. Real-time digital electronic gearing prevents film slippage and guarantees precise cut-off registration at speeds up to 200 packs/min.
Gas Flush MAP Technology
Integrated nitrogen/carbon dioxide injection reduces residual oxygen levels to below 0.5%, significantly preventing lipid oxidation, mold propagation, and crumb staling while extending bakery retail shelf life by 300%.
Hygienic SUS304 Construction
Manufactured in compliance with cGMP and food contact safety standards. Features cantilevered mechanical frames, sloped debris trays, tool-less quick-disconnect belts, and IP65 washdown electrical protection.
Multi-Format Flexibility
Quickly switch between single pillow pack flow wraps, gusseted upright pouches, clam-shell blister packages, and 2/4/6 cupcake multi-packs with minimal mechanical tooling changeover within 10 minutes.
AI Vision Inspection System
Optional high-speed machine vision module checks for frosting collapse, misplaced paper cups, seal integrity, and incorrect barcode printing, automatically rejecting non-conforming items downstream.
Solving Critical Packaging Challenges in Commercial Cupcake Production
In high-throughput commercial bakeries, the packaging stage represents both the ultimate quality barrier and a primary source of operational bottleneck. Cupcakes present unique engineering hurdles due to their high moisture content, porous sponge structure, fragile paper liner integrity, and sensitive aerated frostings (such as buttercream, ganache, cream cheese, or whipped topping). Implementing an automatic cupcake wrapping machine engineered by Ludyway transforms this fragile handling operation into a robust, continuous production cycle.
Key Engineering Metric: Ludyway’s overhead overhead timing conveyors maintain an exact 15mm clearance above decorative frosting tips while utilizing bottom-support vacuum tracking, eliminating 99.9% of topping defects during high-velocity transition phases.
Hermetic Sealing & Barrier Film Control
Bakery goods are prone to staling via starch retrogradation and moisture loss, as well as aerobic microbial spoilage. Our machines handle a vast array of barrier materials, including BOPP, PET/PE laminates, metallized foil films, and biodegradable PLA structures. With dynamic PID temperature control coils integrated into the rotary sealing jaws, the system provides consistent heat delivery at high speeds, guaranteeing leak-free pillow packs even across complex film gussets.
- Continuous rotary sealing jaws with ultra-hard titanium coatings.
- Independent top and bottom temperature regulation (±1°C stability).
- Integrated servo-driven gusset folding mechanism for standalone retail bags.
- Ultrasonic cold-sealing options available for heat-sensitive chocolate toppings.
Automated Tray & Clamshell Integration
For multi-pack formats (e.g., twin-pack, 4-pack, and 6-pack retail clamshells or thermoformed cardboard trays), Ludyway designs custom pick-and-place gantry loaders and robotic delta arms. These systems lift freshly cooled cupcakes from baking pans and seat them precisely into cavity trays prior to entering the horizontal flow wrapper tunnel.
- Custom soft-touch silicone vacuum cups shaped to protect decorative crowns.
- Servo-synchronized tray denesters for plastic blister and paperboard trays.
- High-speed conveyor lane diverters for single and dual wrapper distribution.
- Integrated automatic splice film roll holders for continuous 24/7 non-stop runs.
Cupcake Packaging Machine Model Specifications
Review our standard industrial models below. All configurations can be fully customized with extended infeed conveyors, automatic nitrogen flushing manifolds, thermal transfer printers, and downstream case packing automation.
| Model Series | Packaging Speed | Bag Length Range | Max Product Width/Height | Film Material Compatibility | Control Architecture |
|---|---|---|---|---|---|
| LDC-350X Servo Flow Wrapper Single Pack | 40 – 180 bags/min | 65 – 380 mm | W: 140 mm | H: 80 mm | BOPP, OPP/CPP, PET/PE, Metalized | Dual-Axis Servo + 7″ Touchscreen |
| LDC-450D High-Speed Bakery Wrapper Standard | 50 – 220 bags/min | 90 – 450 mm | W: 180 mm | H: 100 mm | Laminated Film, Heat-Sealable Foil | Tri-Axis Servo + PLC Digital Bus |
| LDC-600MAP Multi-Pack Gas Flush Tray Multi-Pack | 30 – 120 bags/min | 120 – 600 mm | W: 260 mm | H: 130 mm | High-Barrier EVOH, PET/AL/PE | Full Multi-Axis Servo + OMRON/Schneider |
| LDC-800B Box-Motion Hermetic Sealer Heavy Barrier | 25 – 90 bags/min | 150 – 700 mm | W: 320 mm | H: 150 mm | Ultra-Thick Barrier & Retort Films | Box-Motion Long-Dwell Sealing Servo |
Engineered Packaging Lines for Modern Bakeries
Beyond standalone cupcake wrappers, Ludyway manufactures complete turnkey packaging line integrations—from dry baking ingredient filling to secondary cartoning and high-speed shrink wrapping.

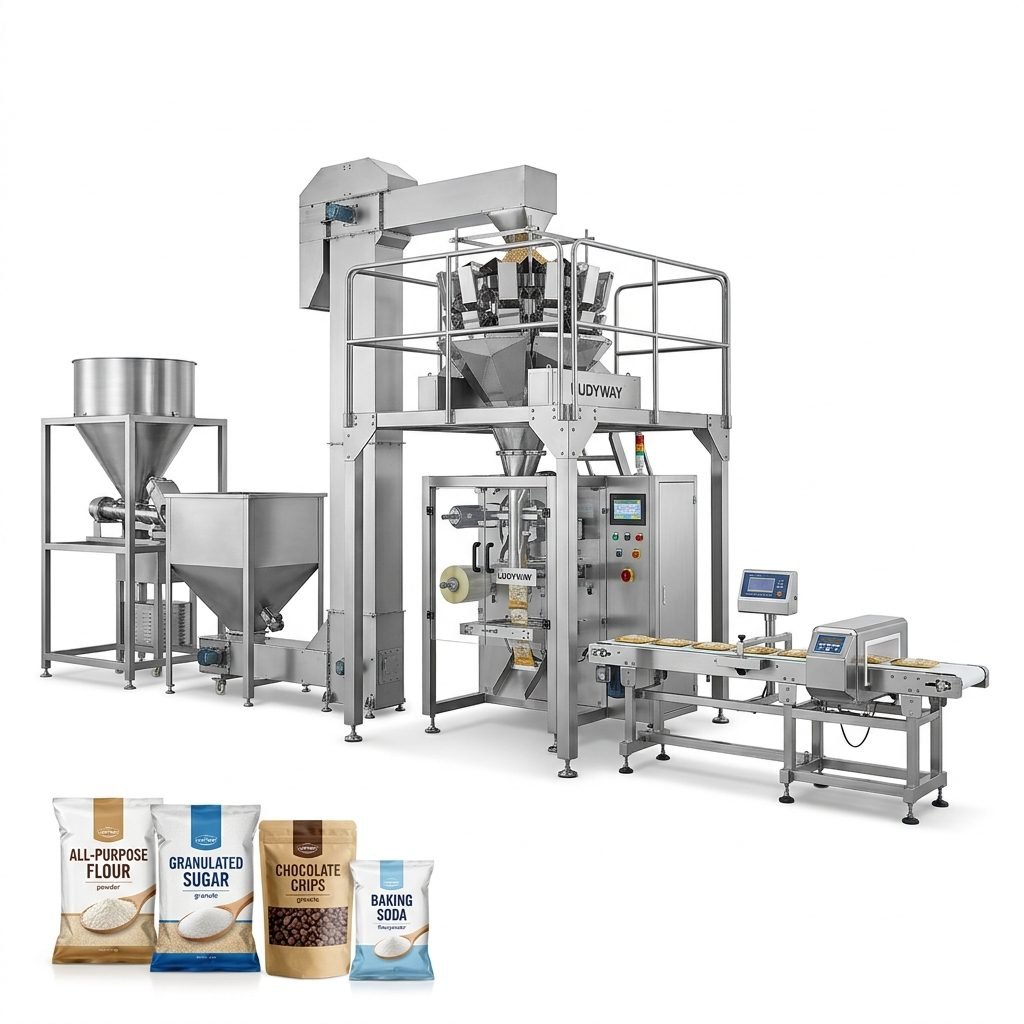

Automated Baking Ingredients Packaging Line
View Specifications
Automatic Cake Mix Sachet & Stick Pack Machine
View Specifications
Automated Baking Mix Turnkey Packaging Line
View Specifications
High-Speed Baking Mix Sachet Packaging System
View Specifications
Multi-Lane Horizontal Flow Wrapper System
View Specifications
Energy Bar & Bakery Sealing Machine
View Specifications
Industrial Secondary Shrink Wrapping Machine
View Specifications
Confectionery & Sweet Multi-Lane Pack System
View SpecificationsGlobal Pioneer in Smart Packaging & Turnkey Automation
Founded in 2010 and backed by more than 30 years of deep packaging industry expertise, Ludyway has developed into one of China’s premier high-tech packaging machinery manufacturers. Supported by our modern 20,000㎡ manufacturing facility and over 130 professional packaging engineers, we specialize in high-precision automated flow wrappers, vertical multi-lane sachet packaging systems, and comprehensive turnkey line automation.
Serving bakeries, food processing plants, and pharmaceutical enterprises in over 100 countries and regions, Ludyway blends continuous digital innovation with strict European CE quality standards. We empower commercial producers to maximize output, safeguard delicate product presentation, and reduce operational costs.
Global Exhibitions & Trusted Industry Partnerships
Ludyway regularly showcases advanced packaging automation systems at world-renowned industrial trade fairs including Interpack Germany, ProPak Asia, IPACK-IMA Italy, and Pack Expo USA.
Step-by-Step Operation & Best Practices for Cupcake Wrapping Lines
Implementing a continuous automatic cupcake wrapping machine within an industrial bakery requires seamless upstream cooling coordination, precise film registration, and reliable downstream cartoning. Follow this engineering checklist to ensure maximum OEE (Overall Equipment Effectiveness) and minimum film waste.
Ensure core cupcake temperatures drop below 28°C post-baking to prevent condensation inside the hermetic film package, which could cause mold growth.
Optical photoelectric gates detect oncoming single cupcakes or multi-cup trays, adjusting smart belt speeds to feed products perfectly into the former tube.
The film unwinds around the forming box while bottom heated fin wheels seal the longitudinal seam as inert food-grade nitrogen gas is injected continuously.
Rotary servo cutting jaws create clean cross-seals without touching cupcake edges. Packed items pass through checkweighers and metal detectors for QA.
Selecting the Ideal Film Barrier for Cupcakes
The choice of flexible packaging material directly dictates retail shelf life. For standard ambient distribution (7–14 days), biaxially oriented polypropylene (BOPP) provides exceptional clarity, moderate moisture barrier, and high mechanical tensile strength. For extended distribution (30–90 days using MAP gas flushing), multi-layer co-extruded laminates (such as PET/PVDC/PE or oriented nylon structures) offer superior oxygen barrier properties (OTR < 2.0 cc/m²/24h), preventing crumb dehydration and fat oxidation.
Preventative Maintenance Protocol for 24/7 Production
To sustain continuous operation at 180+ PPM, perform daily wiping of the silicone infeed belts with food-grade sanitizing agents, weekly inspection of heated sealing jaw slip rings, and monthly calibration of servo electronic cams. Ludyway machines feature tool-free quick release mechanisms for all conveyor components, cutting changeover and sanitization downtime by over 60%.
Frequently Asked Questions (FAQ)
Find technical answers regarding speed, frosting protection, gas flushing, film compatibility, and production line integration for Ludyway cupcake packaging equipment.
How does the machine wrap iced cupcakes without damaging the frosting?
Our wrappers use non-contact overhead clearance designs and precision side-grip timing belts. The film forming box is engineered with custom flared geometry that shapes the wrapping web around the cupcake without any physical friction against decorative tops or sugar crests.
Can one machine handle both single cupcakes and multi-pack blister trays?
Yes. Thanks to our quick-adjust forming shoulder and recipes stored in the 7″ or 10″ touchscreen PLC, operators can switch from single cupcakes in paper cups to 2, 4, or 6-cavity clamshell trays in less than 10 minutes with minimal tooling.
How much does Modified Atmosphere Packaging (MAP) extend cupcake freshness?
By displacing oxygen inside the package with pure food-grade Nitrogen (N2) or N2/CO2 blends to below 0.5% O2, ambient shelf life is typically extended from 5–7 days up to 21–45 days, effectively eliminating mold formation while retaining crumb moisture.
What is the maximum operating speed of Ludyway automatic cupcake wrappers?
Standard single-lane servo models operate reliably between 40 to 180 packs per minute depending on product dimensions and film gauge. Dual-lane continuous configurations can reach up to 350 packs per minute for large industrial bakeries.
Are Ludyway packaging machines compliant with international sanitary standards?
Every Ludyway machine is constructed from certified AISI 304/316 stainless steel with food-grade PU conveyor belts. Our designs strictly satisfy CE, ISO9001, and cGMP hygiene guidelines for easy sanitization and washdown routines.
Upgrade Your Bakery Automation with Ludyway Packaging Solutions
Contact our senior packaging engineers today for customized layout drawings, sample film testing, and comprehensive turnkey project quotations tailored to your cupcake production scale.
