Bubble Packaging Machine | Efficient Packing Solutions
Engineered for high-volume protection, automated forming, and precision thermoforming blister encapsulation. Boost throughput, eliminate material waste, and safeguard products across medical, electronics, pharmaceutical, and high-end consumer goods industries.
Advanced Bubble Packaging Machine Engineering
Modern industrial manufacturing requires protective packaging systems that balance high mechanical durability, tamper evidence, barrier integrity, and high-speed automated output. Our bubble packaging machines deliver precision thermoforming blister encapsulation and industrial on-demand protective air-cushion manufacturing tailored to modern global supply chains.
Pioneering Blister & Air Cushion Packaging Automation
In modern industrial facilities, the term bubble packaging machine encompasses high-precision thermoforming blister packaging lines and high-speed automated air bubble cushion manufacturing equipment. Blister packaging utilizes heat and pressure to mold plastic polymers into protective cavities (pockets or bubbles) that house tablets, medical ampoules, cosmetic liquids, and delicate electronic subassemblies.
By integrating servo-driven mold stations, precise heating zones, and optical vision inspection systems, our systems guarantee hermetic sealing, zero puncture failure, and continuous operational reliability under stringent pharmaceutical and food compliance frameworks.
- Multi-Material Compatibility: Form and seal PVC, PVDC, Aclar, Alu-Alu (cold forming), PET, and bio-degradable PLA sheets.
- Integrated Smart PLC Systems: Touchscreen HMI interfaces with automatic temperature feedback, recipe memory, and fault diagnostics.
- Turnkey Line Synchronization: Seamless integration with multi-lane fillers, cartoning systems, dynamic checkweighers, and palletizers.
Key Subsystems of High-Yield Bubble Packaging
Our engineering architecture combines rapid mold replacement, continuous servo feeding, and airtight thermal bonding mechanisms to ensure continuous 24/7 uptime in demanding factory environments.
Positive & Negative Thermoforming
Uses multi-zone infrared contact heating paired with compressed air blow-forming and mechanical plug assists. Yields uniform pocket wall thickness even at maximum draw depths, preventing weak corners and micro-cracks.
Rotary & Platen Heat Sealing
Supports both continuous rotary sealing for high-speed multi-lane output and flat intermittent platen sealing for delicate medical foils, ensuring uniform pressure distribution and preventing thermal product degradation.
High-Precision Dosing & Feeding
Configurable for automated brush box feeders for solid tablets, peristaltic liquid dosing systems for cosmetic ampoules, or robotic pick-and-place arms for irregularly shaped electronics and consumer hardware.
Machine Vision Inspection
Equipped with high-speed CCD industrial cameras that scan each cavity at microsecond rates. Automatically detects empty pockets, foreign particles, damaged foil seals, and incorrect color codes, triggering pneumatic rejection.
Zero-Waste Servo Punching
Synchronized linear servo drives advance material through cross-cutting, longitudinal perforation, and shape punching. Reduces scrap skeleton trim by up to 18% compared to traditional mechanical gear-driven punches.
GMP & ISO Compliant Hygiene
Built with 304 and 316L pharmaceutical-grade stainless steel frames, quick-release sanitary clamps, and isolated mechanical drive cabinets to prevent cross-contamination and simplify washdown maintenance.
Bubble Packaging Machine Technical Specifications
Compare standard configurations across our compact, medium-throughput, and heavy industrial automatic bubble packaging machinery series.
| Specification Parameter | LUDY-BP200 Compact | LUDY-BP350 High-Speed | LUDY-BP600 Turnkey System |
|---|---|---|---|
| Cutting / Punch Frequency | 15 – 35 cuts / min | 30 – 65 cuts / min | 50 – 120 cuts / min |
| Max Forming Area | 130 x 110 mm | 250 x 180 mm | 350 x 280 mm |
| Max Forming Depth | 16 mm (standard) | 26 mm (deep cavity) | 35 mm (customizable) |
| Forming Material Suitability | PVC / PVDC / PET | PVC, Alu-Alu, PVDC, Aclar | All Barrier Films & Cold Foil |
| Lidding / Sealing Foil | Alu Foil / Glassine Paper | PTP Alu / Dialysis Paper / Tyvek | Multi-layer Laminate / Tyvek |
| Compressed Air Consumption | 0.4 – 0.6 m³/min | 0.6 – 1.0 m³/min | 1.2 – 2.0 m³/min (0.6-0.8 MPa) |
| Total Electrical Power | 4.5 kW (380V / 220V 50/60Hz) | 8.5 kW | 15.0 kW (Servo Driven) |
| Control Architecture | Siemens / Delta PLC & HMI | Siemens S7-1500 & Profinet | Industrial PC + Smart IoT Cloud |
Engineered Across Major Global Industries
From sterile medical barrier systems to high-speed consumer retail blisters, our bubble packaging machines adapt to diverse material chemistries and product geometries.
Pharmaceutical & Health
Blister packing for capsules, tablets, medical syringes, ampoules, diagnostic cassettes, and nutraceutical softgels under cleanroom conditions.
Cosmetic & Personal Care
Unit-dose bubble packaging for beauty serums, lip balm pods, facial oil ampoules, single-use travel essences, and sample packs.
Electronic & Hardware
Anti-static bubble wrap forming, protective blister trays for SMD modules, connectors, sensors, batteries, and precision micro-components.
Food & Confectionery
Hermetically sealed bubble blister packaging for candies, lozenges, chewing gums, single-serve sauces, jams, and portioned honey.
Featured Packaging Systems & Automation Lines
Explore our top-performing packaging machines engineered for high-precision forming, multi-lane sealing, liquid ampoule filling, and bulk packaging operations.
Certified Manufacturing Excellence
Our machinery complies rigorously with CE electrical safety standards, ISO9001 quality management benchmarks, and cGMP sanitary regulations, earning the trust of leading Fortune 500 manufacturers worldwide.
Connecting at Premier Global Packaging Expos
Frequently Asked Questions
Find direct technical answers regarding bubble packaging machine configuration, material selection, cycle speeds, and turn-key integration.
What is the difference between thermoforming blister packaging and air bubble cushion makers?
Thermoforming blister packaging machines heat rigid or semi-rigid polymer sheets (PVC, PVDC, PET) to mold solid cavities that encapsulate individual products (such as capsules or electronics) with backing foil. Air bubble cushion machines, by contrast, inflate and heat-seal continuous PE air films to create protective void-fill cushioning used in logistics shipping boxes.
Can one bubble packaging machine handle multiple product sizes and shapes?
Yes. Our bubble packaging machines feature modular quick-change tooling. By swapping the heating plates, forming molds, guide tracks, and punching dies, operators can transition between different capsule counts, vial sizes, or hardware shapes in under 25 minutes without specialized mechanical tools.
How does your machine ensure hermetic sealing on Alu-Alu cold forming foil?
Alu-Alu cold forming requires high mechanical pressure without direct thermal degradation of the aluminum barrier. Our machines utilize heavy-duty servo-toggle clamping stations with micro-adjustable mechanical depth stops, ensuring flawless barrier seal tightness without pinhole rupture or delamination.
What auxiliary equipment is needed for a fully automated packaging line?

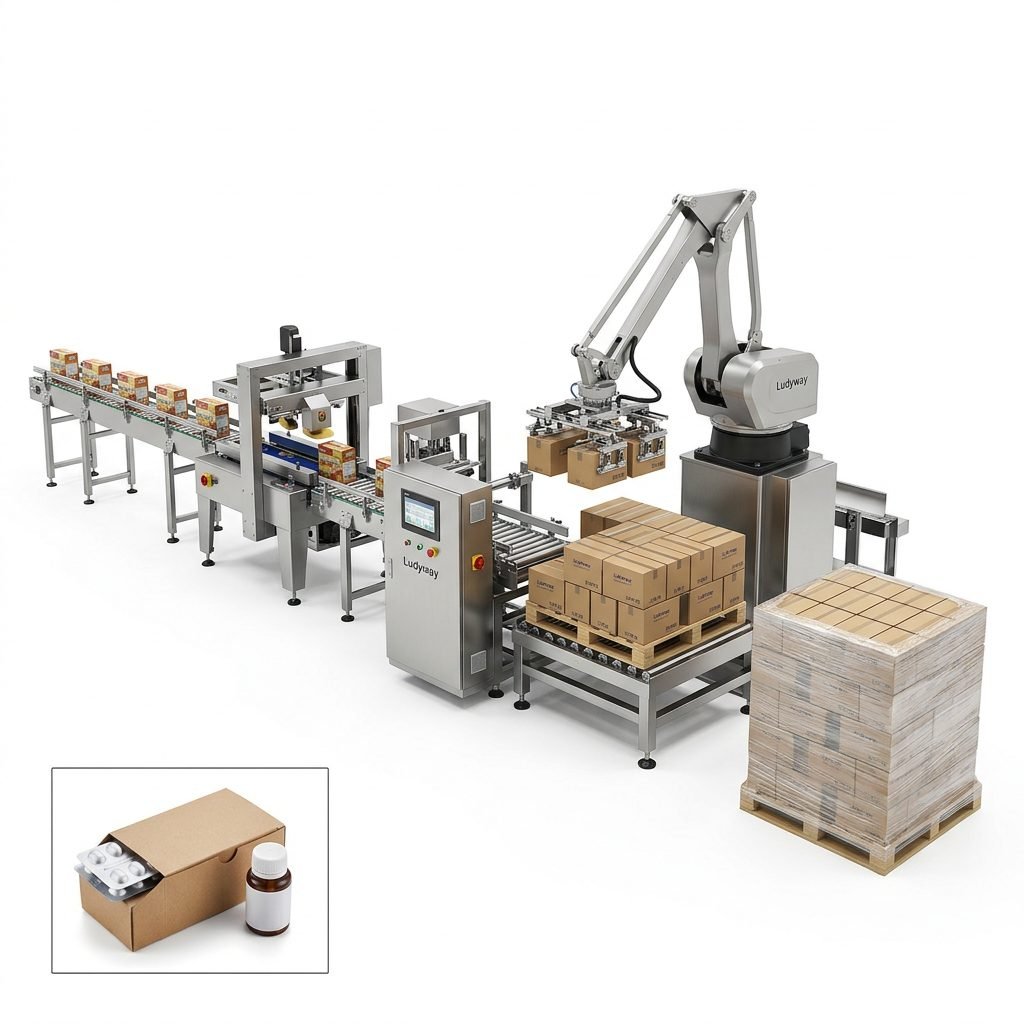

A full turnkey line typically integrates the primary bubble forming/blister machine with automated feed elevators, visual inspection cameras, high-speed cartoning machines, dynamic checkweighers, date/lot laser coders, case packers, and end-of-line palletizing robotic arms.
Accelerate Your Packaging Facility Efficiency Today
Consult with our engineering team to select the ideal bubble packaging machine layout, obtain detailed 3D technical CAD designs, and receive factory-direct quotation support within 24 hours.
